In the modern manufacturing landscape, the ability to scale and modernize your production line often hinges on how well your equipment talks to each other. For many facilities, a Rockwell Automation (Allen-Bradley) PLC network serves as the robust backbone of their operations. However, when it's time to introduce high-speed, precision robotics, ABB is often the gold standard.
The question then becomes: How do you bridge the gap between these two industry giants without a costly "rip and replace" of your existing infrastructure?
At Complete Control Solutions (CCS), we specialize in exactly this type of seamless integration. As an Authorized Robotics System Integrator for ABB and a Bronze Level System Integrator for Rockwell Automation, our engineers have the verified credentials and hands-on experience to ensure these systems operate as one cohesive unit. By leveraging the EtherNet/IP protocol, we can help you achieve a level of manufacturing efficiency that directly impacts your bottom line.
Why Integrate ABB Robotics with Rockwell PLCs?
Choosing a multi-vendor approach allows you to leverage the "best of breed" for each component of your system. You get the world-class motion control and reliability of ABB Robotics combined with the ubiquitous, user-friendly control logic of Rockwell Automation.
The Benefits of This Hybrid Approach:
- Cost-Effective Modernization: You don't need to overhaul your entire control architecture to add advanced robotics. We can integrate new ABB units into your current PLC environment.
- Scalability: As your production needs grow, adding additional robot cells becomes a standardized process of expanding your EtherNet/IP network.
- Data-Driven Decision Making: Real-time communication between the robot and PLC allows for precise tracking of cycle times, error codes, and production counts directly on your SCADA or HMI.
- Maintenance Synergy: Your maintenance team can continue to use the Studio 5000 environment they know for the PLC logic, while our engineers handle the specialized RAPID programming for the ABB controllers.
The Technical Backbone: EtherNet/IP Integration

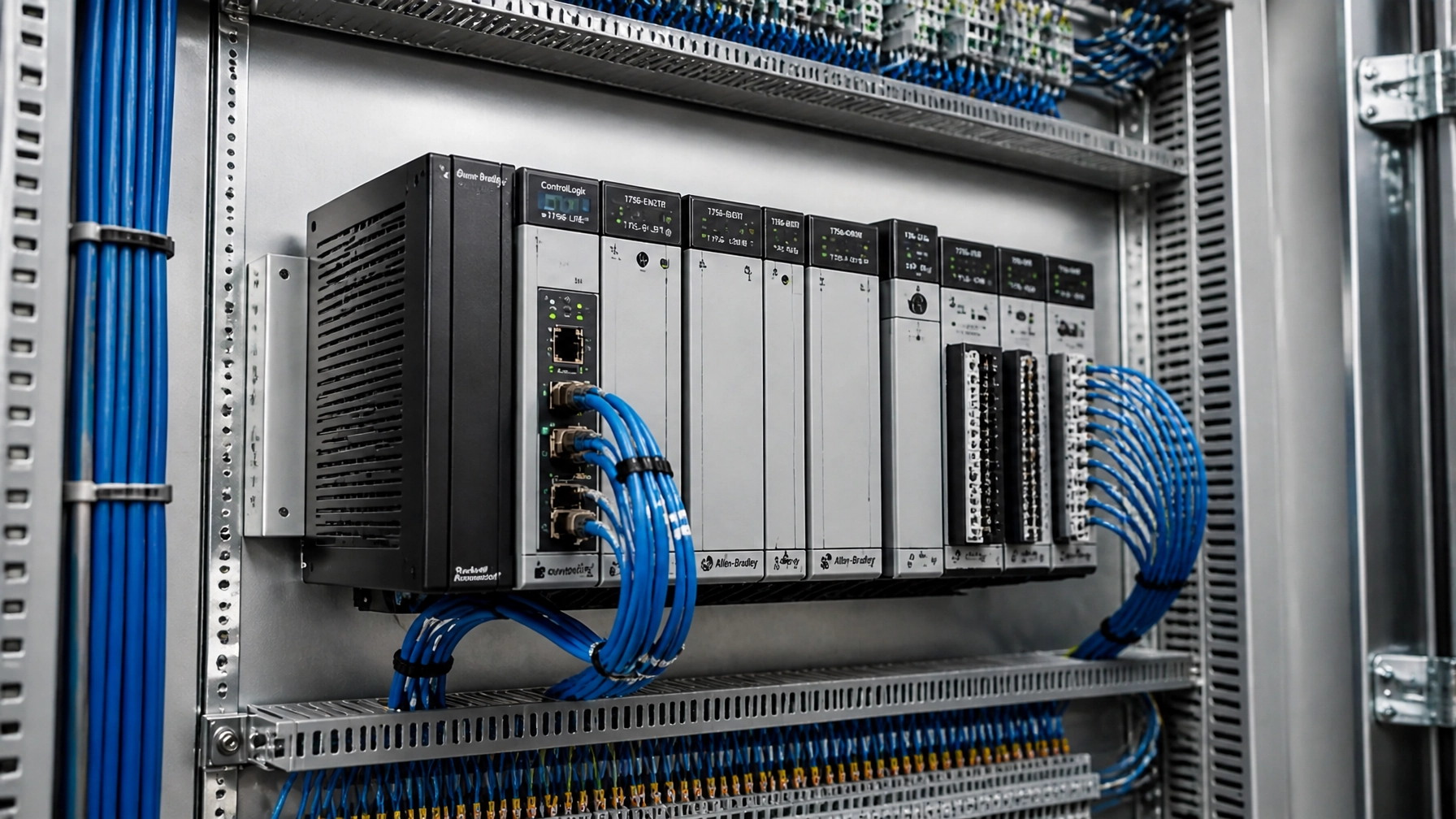

The most efficient way to connect an ABB robot controller (like the IRC5 or the newer OmniCore) to a Rockwell ControlLogix or CompactLogix PLC is via EtherNet/IP. In this configuration, the Rockwell PLC typically acts as the Scanner (the master), while the ABB robot acts as the Adapter (the slave).
Our engineering team follows a rigorous process to ensure this communication is low-latency and reliable.
1. Configuration on the ABB Side
Before the PLC can see the robot, we must configure the robot's internal communication settings. This involves:
- Setting up a dedicated IP address within your industrial network subnet.
- Configuring the EtherNet/IP "Internal Adapter Device" within the ABB RobotWare software.
- Defining the input and output data sizes (bytes or words) that will be exchanged.
2. The Power of EDS Files
To make the integration "plug-and-play" on the Rockwell side, we utilize Electronic Data Sheets (EDS files). These are digital identity cards for the robot. By registering the ABB EDS file within Rockwell’s Studio 5000 software, the PLC instantly recognizes the robot’s capabilities, assembly instances, and connection parameters.
3. Implementing Add-On Instructions (AOIs)
To simplify the programming for your team, we often utilize Add-On Instructions (AOIs) and User-Defined Data Types (UDTs). Rather than dealing with a raw string of bits and bytes, an AOI allows your PLC programmer to see clear, descriptive tags like Robot_In_Position, Robot_Fault, or Start_Cycle. This abstraction reduces programming errors and significantly speeds up the commissioning process.
Ensuring Safety and Reliability
Integration isn't just about moving data; it's about ensuring the safety of your personnel and the longevity of your equipment. When we perform on-site services, we prioritize the alignment of safety protocols between the two systems.
Whether it’s integrating an ABB SafeMove system with a Rockwell GuardLogix PLC or ensuring that E-Stop circuits are properly cross-monitored, we ensure that your system meets all relevant safety standards. This holistic view is part of our commitment to being a "trusted partner" rather than just a vendor.
Why Partner with CCS for Your Integration?
Whether you have a single robot cell or a full distributed control system, the complexity of multi-brand integration requires more than just a manual; it requires experience.
- Verified Expertise: Our status as an Authorized ABB Integrator and Bronze Rockwell Partner means we have direct access to the latest software, technical support, and training from the manufacturers themselves.
- Comprehensive Support: From the initial consulting phase to custom industrial control panel fabrication, we manage the project from start to finish.
- Scalable Solutions: We don't believe in one-size-fits-all. We analyze your specific production needs to create a solution that fits your budget today while leaving room for the growth of tomorrow.
Take the Next Step in Your Automation Journey
Integrating ABB robotics with your existing Rockwell PLC network is one of the most effective ways to modernize your facility, reduce waste, and increase throughput. By choosing a partner who understands the nuances of both platforms, you ensure a smooth transition and a robust, reliable system.
If you are ready to explore how these two industry leaders can work together in your facility, we invite you to contact our team today. Let's discuss your specific needs and expectations, and together, we can initiate a solution that equips your business for the future.
Ready to get started? Fill out our New Customer Form to give us a head start on your project details.
